Vehicle Fitment
Peterbilt
- 567: 2014
About This Product
Learn more about this product's features and benefits.
Warranty Information
3 Year Warranty
Specifications
| Bulb Type | [LED Projector] |
|---|---|
| Compliance | [CMVSS-108 DOT/SAE FMVSS-108] |
| Current Draw @ 12 Volts | [High: 1.3 Amps Low: 1.1 Amps] |
| Drl Amperage (watts/amps) | [0.4 Amps / 4.6 Watts] |
| Effective Lumens | [High: 960 Lumens Low: 960 Lumens] |
| Function 1 | [Combination High & Low Beam with DRL Accent] |
| Function 2 | [Turn Signal & Marker] |
| Housing Material | [Polycarbonate] |
| Inner Box Qty | [1 PC] |
| Interior Color | [Black] |
| LED Power | [High: 17 Watts Low: 14 Watts] |
| Lens Color | [Clear] |
| Lens Material | [Polycarbonate] |
| Operating Voltage | [9-24 Volts (DRL Compatible)] |
| Outer Box Qty | [2 PCS] |
| Package Dimensions | [18"L x 9"W x 10"H] |

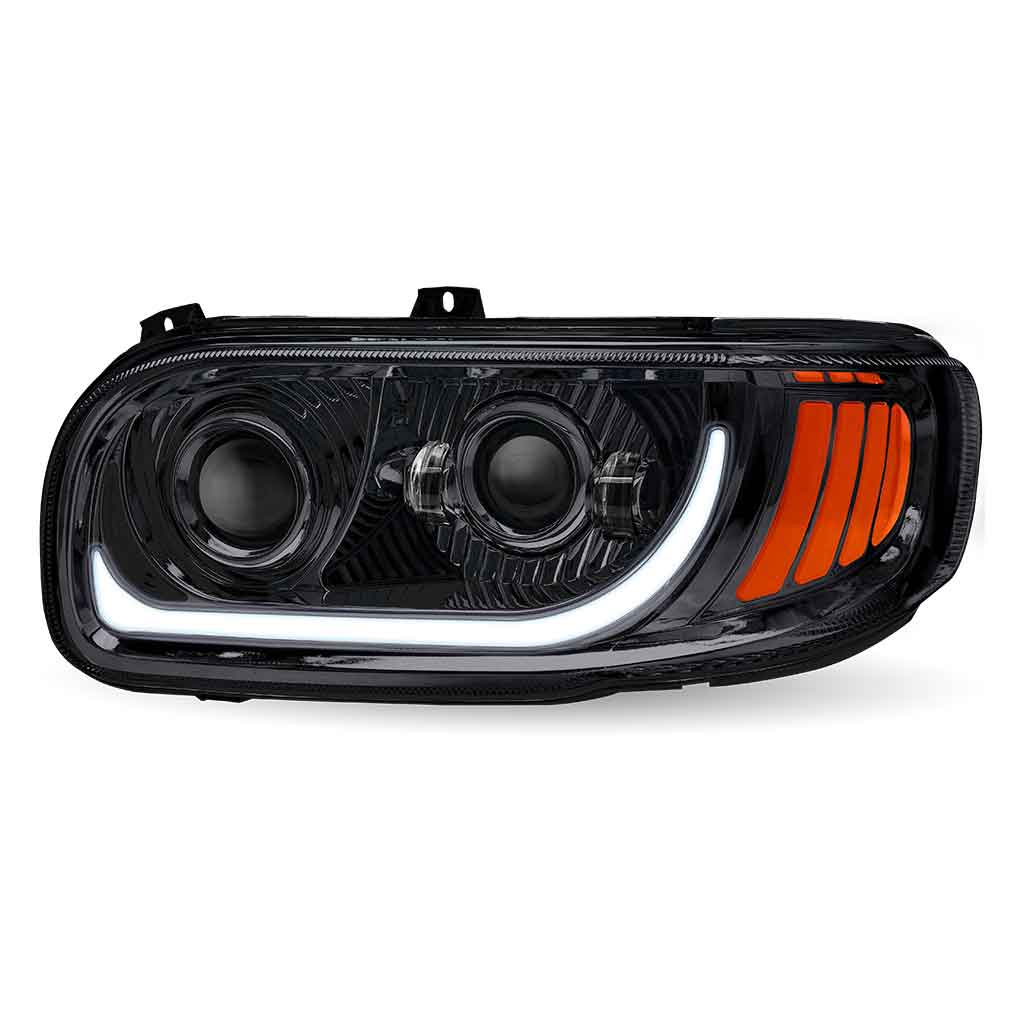

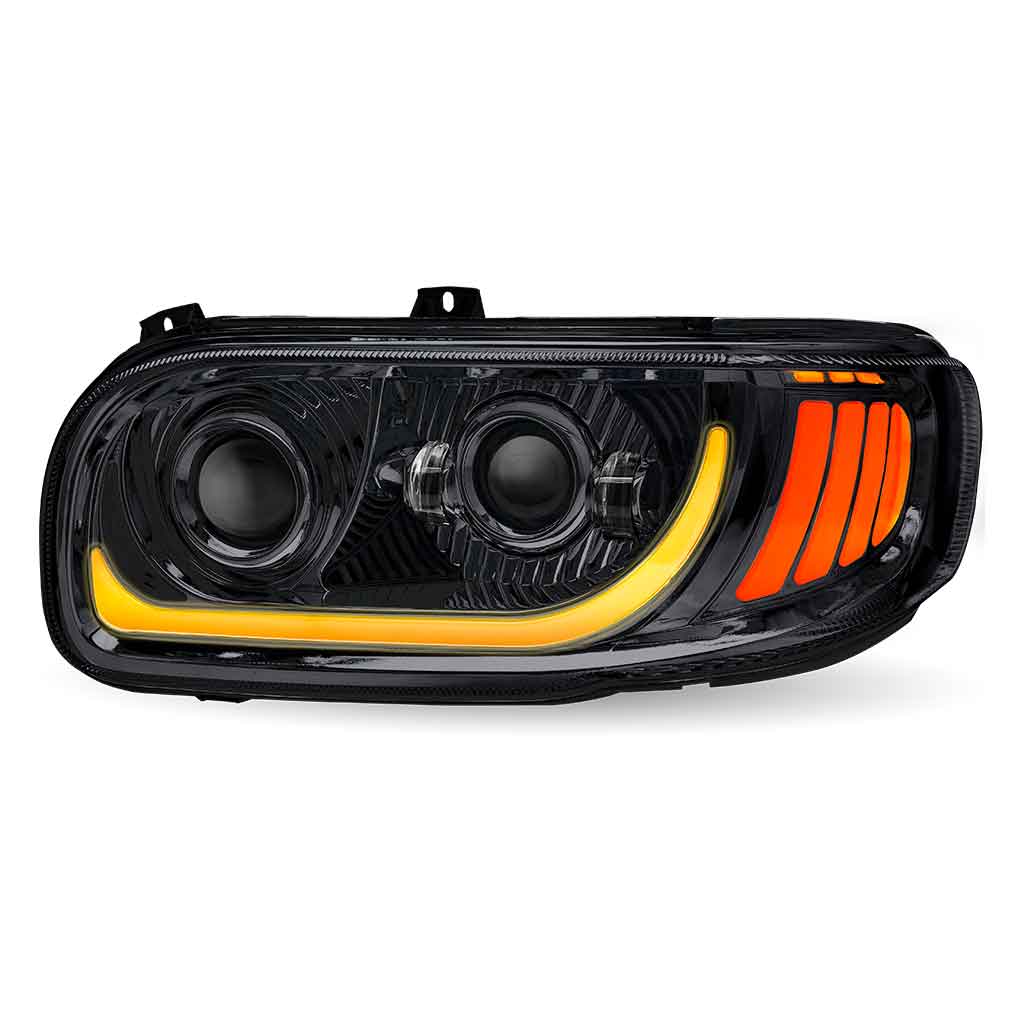

| Product Description | [PB. 389/388/367/567 LED Projector Headlight Assembly – Black (Driver Side)] |
| Raw Lumens | [High: 3000 Lumens Low: 3000 Lumens] |
| Retrofit | [P54-6112-110] |
| Side Marker Amperage (watts/amps) | [0.1 Amps / 1.33 Watts] |
| Size | [OE] |
| Sold | [Individually] |
| Style | [Peterbilt] |
| Turn / Marker Amperage (watts/amps) | [1.1 Amps / 13.8 Watts] |
| Vendor | [trux] |
| Warranty | [3 Year Warranty] |
| Waterproof Rating | [IP66 Rating] |
