About This Product
Learn more about this product's features and benefits.
Warranty Information
2 Year Warranty
Specifications
| Bulb Type | [LED Reflector] |
|---|---|
| Color Temperature | [5500-6500 Kelvin] |
| Compliance | [CMVSS-108 DOT/SAE FMVSS-108] |
| Current Draw @ 12.8 Volts | [High: 1.6 Amps Low: 1 Amp] |
| Diodes | [Auxiliary Strip: 24 Diodes High: 2 Diodes Low: 1 Diode] |
| Effective Lumens | [High: 1600 Lumens Low: 1000 Lumens] |
| Function 1 | [Combination High & Low Beam] |
| Function 1 Amperage | [High: 1.6 Amps Low: 0.9 Amps] |
| Function 2 | [Auxiliary Strip] |
| Function 2 Amperage | [0.25 Amps] |
| Housing Material | [Aluminum Alloy] |
| Interior Color | [Chrome] |
| LED Power | [High: 20.5 Watts Low: 12.8 Watts] |
| Lens Color | [Clear] |
| Lens Material | [Polycarbonate] |
| Operating Voltage | [9-35 Volts (DRL Compatible)] |
| Package Dimensions | [8.05"L x 3.54"W x 5.92"] |

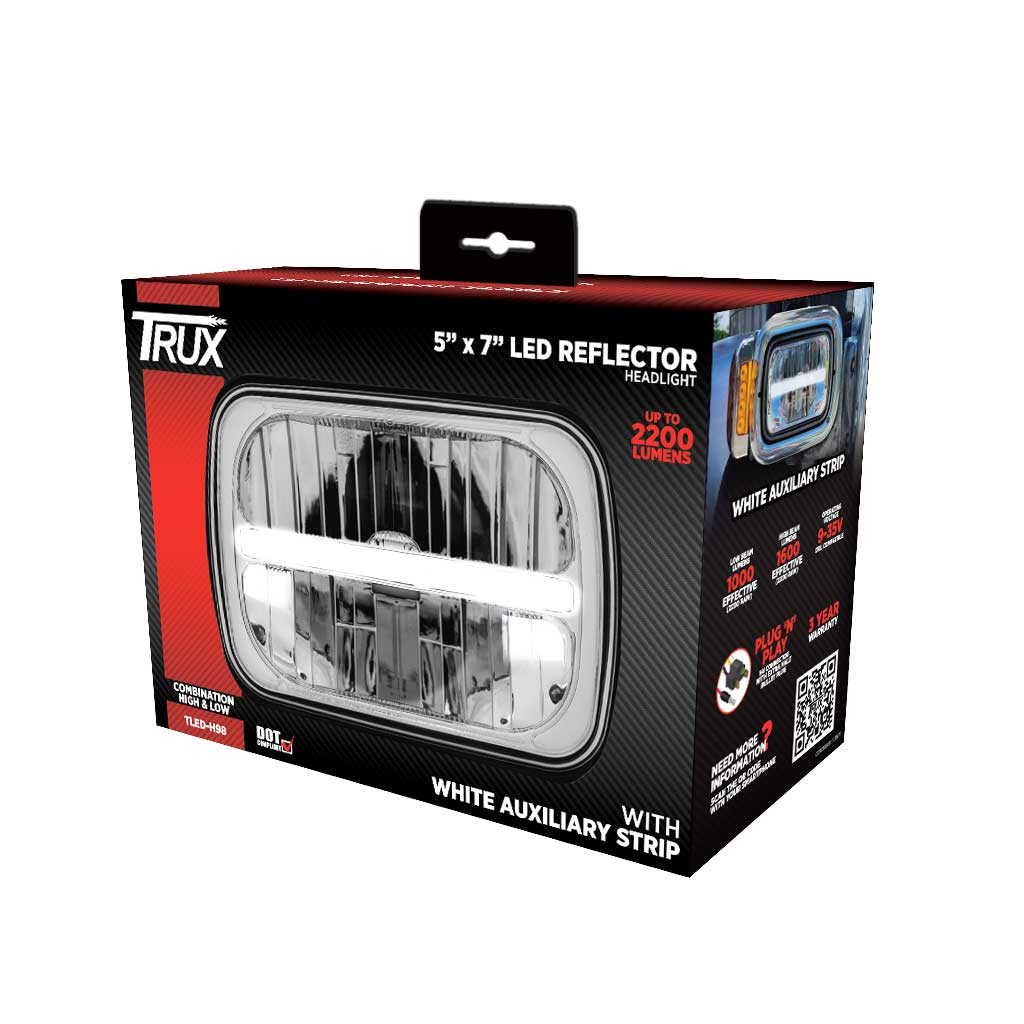

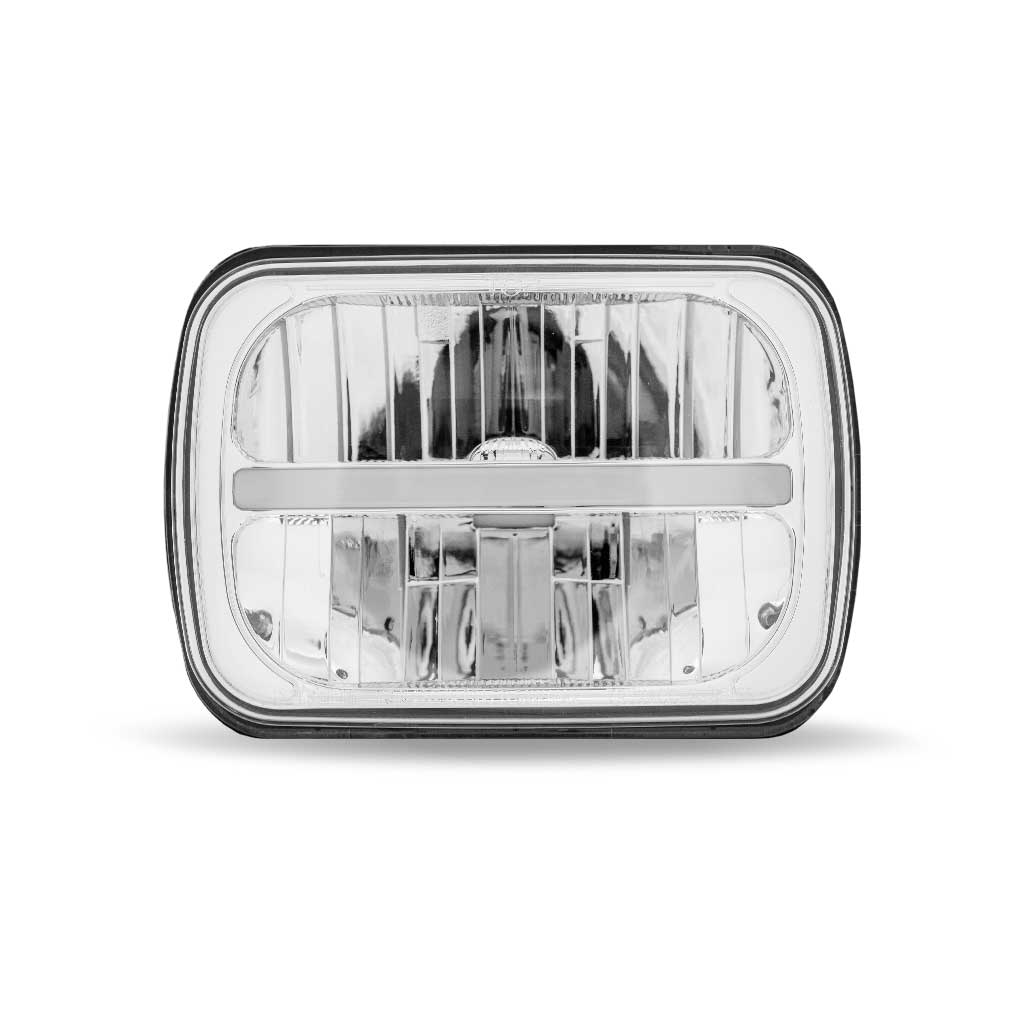

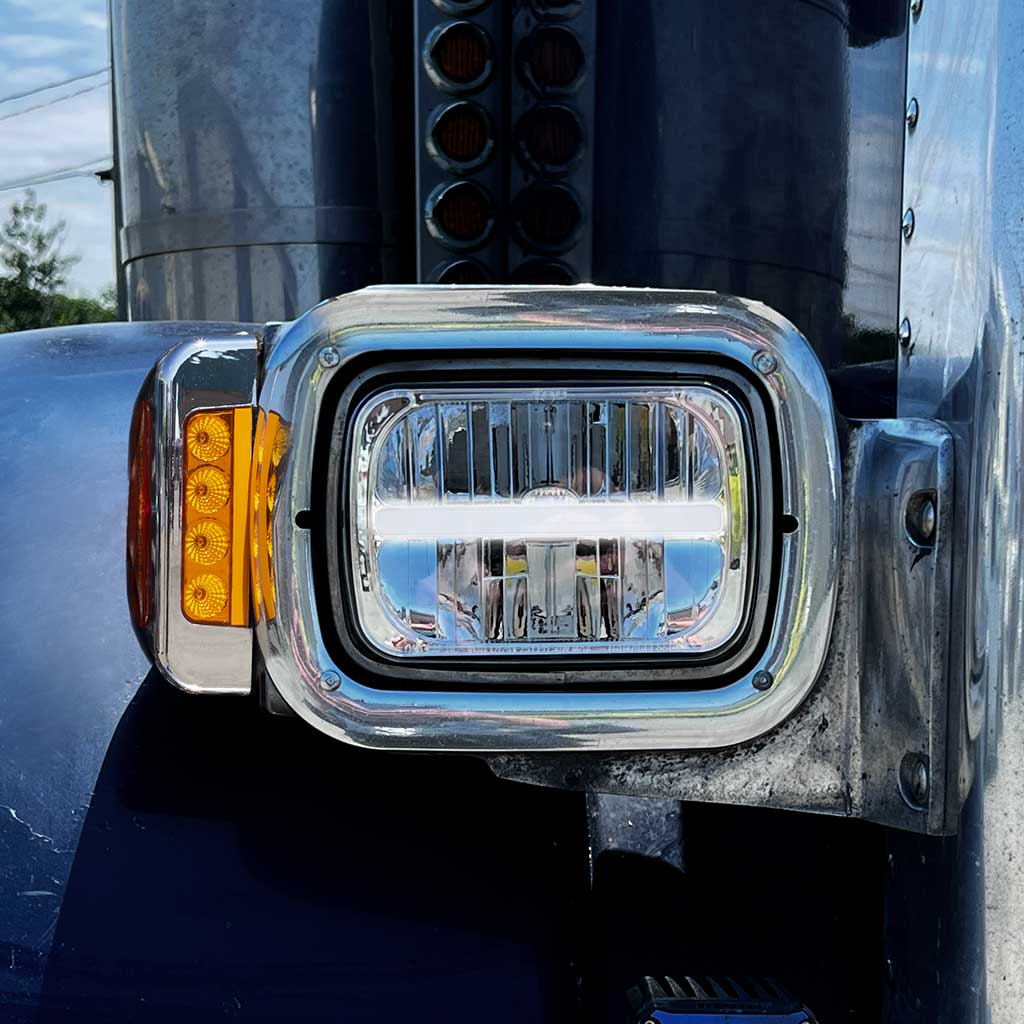

| Product Description | [5" x 7" LED Reflector Headlight with Glow Position LED Accent – Combination High & Low Beam] |
| Product Dimensions | [7.83" x 2.94" x 5.53"] |
| Raw Lumens | [High: 2200 Lumens Low: 2200 Lumens] |
| Retrofit | [6052 6053 H6054 HD6054 HP6054] |
| Size | [5" x 7"] |
| Sold | [Individually] |
| Style | [Rectangular] |
| Vendor | [trux] |
| Warranty | [2 Year Warranty] |
| Waterproof Rating | [IP67 Rating] |

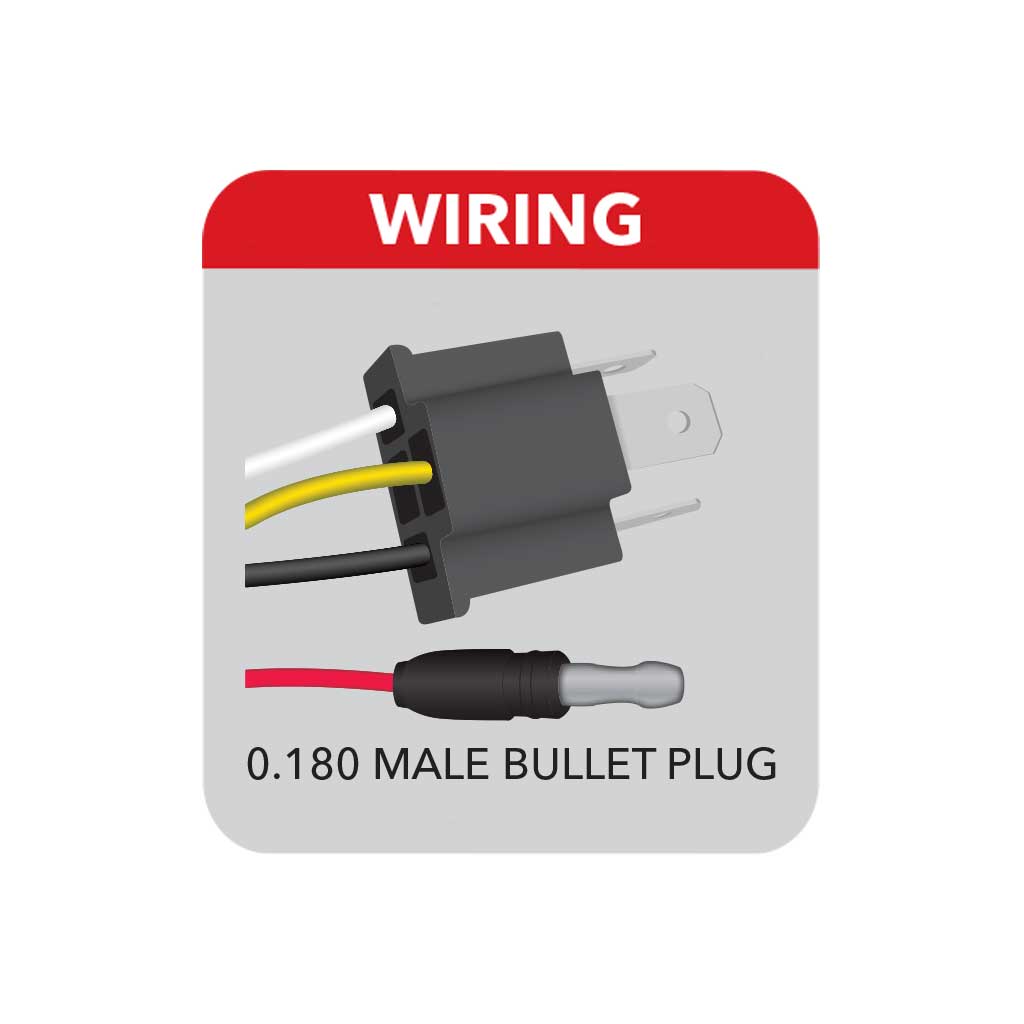

| What's Included | [Headlight Conversion Plug] |
