About This Product
Learn more about this product's features and benefits.
Warranty Information
4 Year Warranty
Specifications
| Bulb Type | [LED Projector] |
|---|---|
| Color Temperature | [5500-6500 Kelvin] |
| Compliance | [CMVSS-108 DOT/SAE FMVSS-108] |
| Diodes | [High: 5 Diodes Low: 3 Diodes] |
| Effective Lumens | [High: 2400 Lumens Low: 1100 Lumens] |
| Function 1 | [Combination High & Low Beam] |
| Function 1 Amperage | [High: 1.7 Amps Low: 0.9 Amps] |

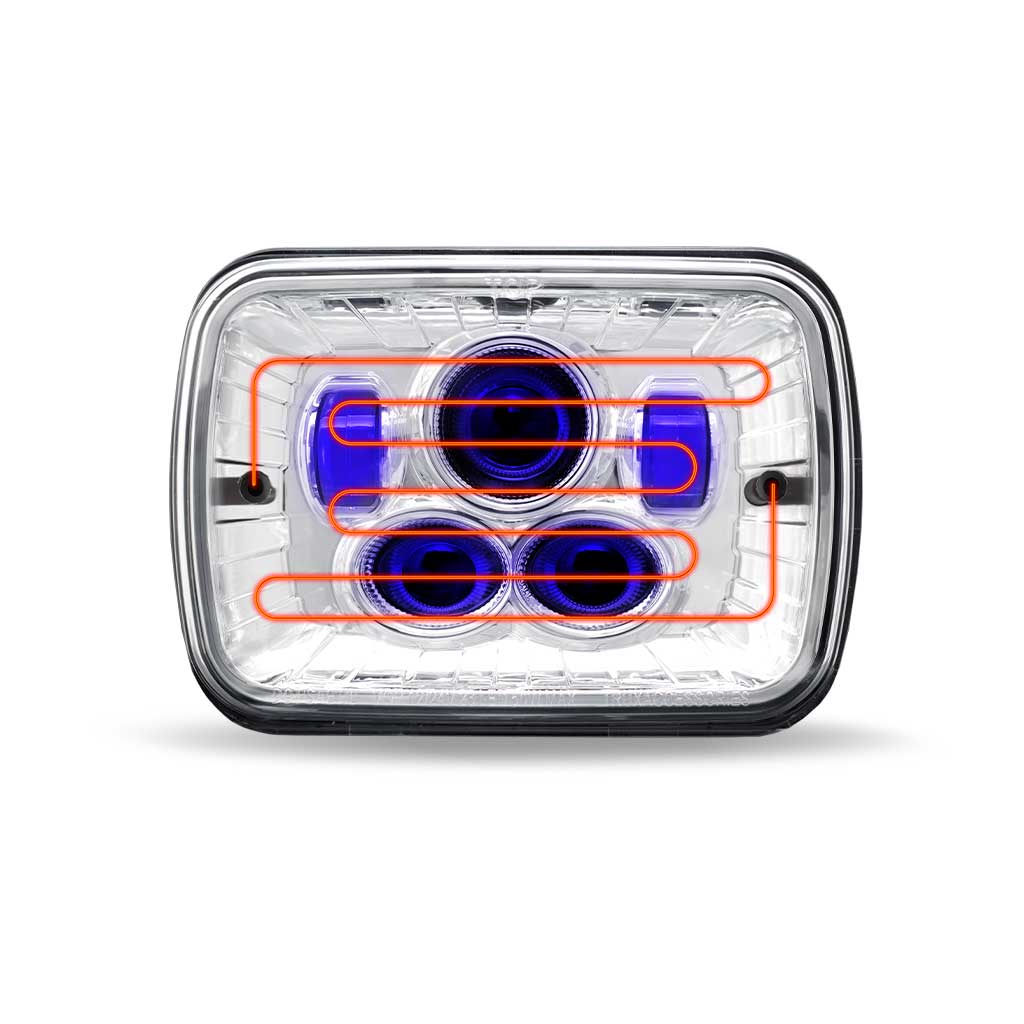

| Function 2 | [Optional Backlit Auxiliary] |
| Function 2 Amperage | [0.03 Amps] |

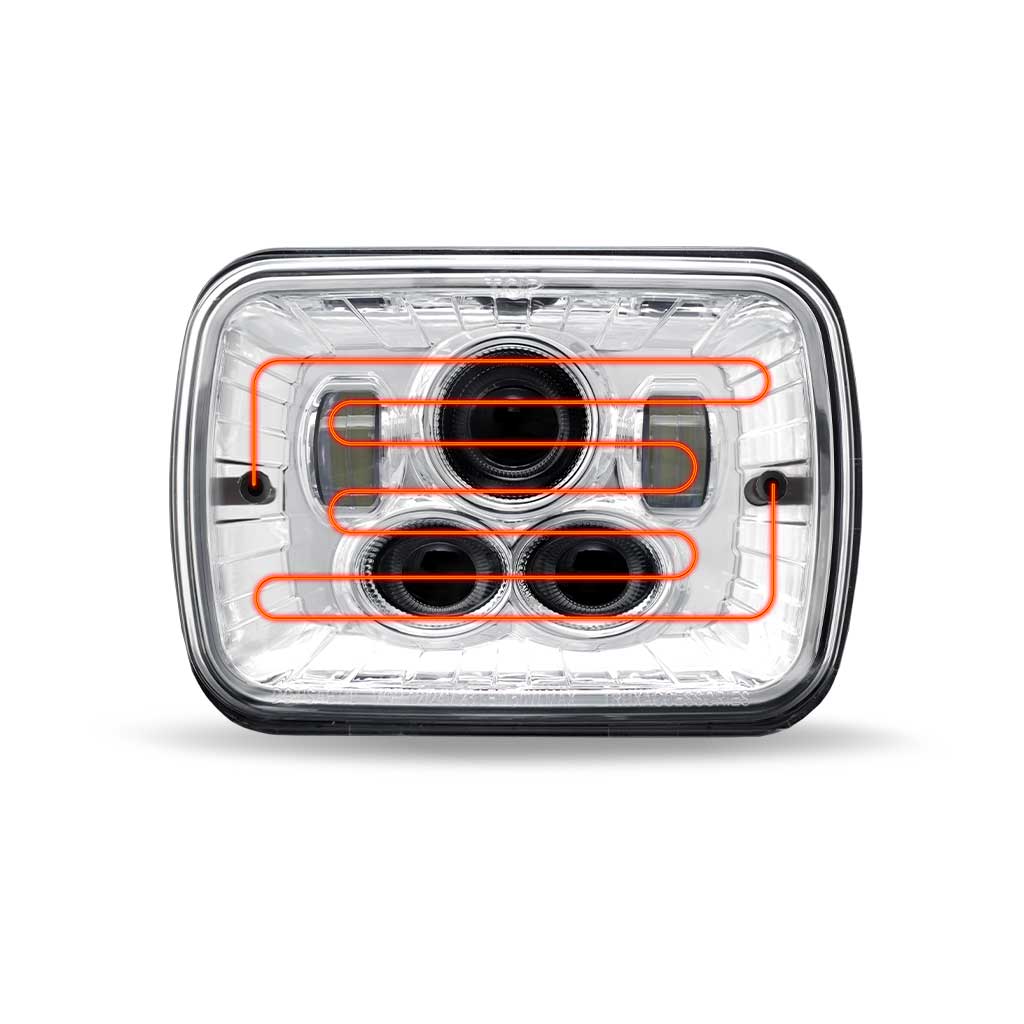

| Function 3 | [Heated Lens] |
| Function 3 Amperage | [1 Amp] |
| Housing Material | [Aluminum Alloy] |
| Interior Color | [Chrome] |
| LED Power | [Heat Activation High: 34.6 Watts Heat Activation Low: 24.3 Watts High: 21.8 Watts Low: 11.5 Watts] |
| Lens Color | [Clear] |
| Lens Material | [Polycarbonate] |
| Operating Voltage | [9-35 Volts (DRL Compatible)] |
| Package Dimensions | [8.05"L x 3.54"W x 5.92"] |
| Product Description | [5" x 7" Heated LED Projector Headlight with Optional Backlit Auxiliary – Combination High & Low Beam] |

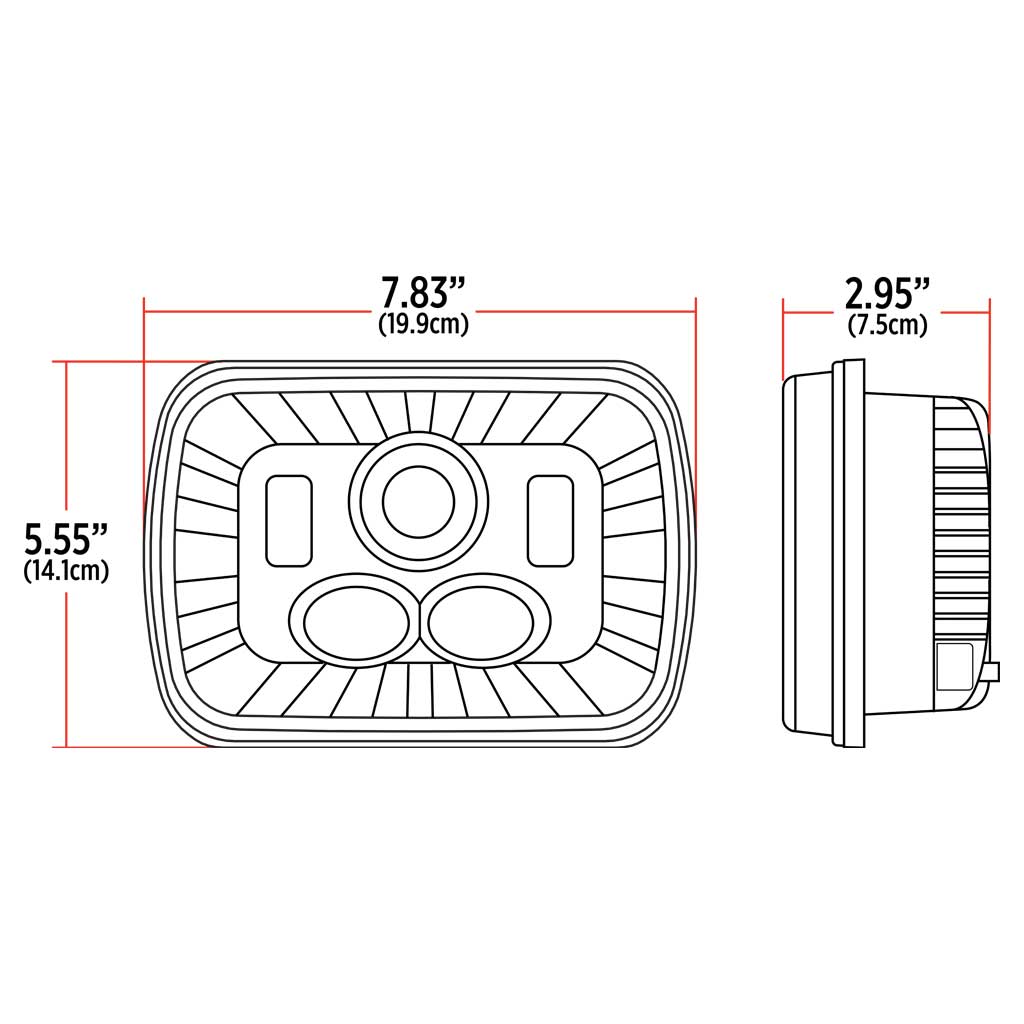

| Product Dimensions | [7.83" x 2.94" x 5.53"] |
| Raw Lumens | [High: 4000 Lumens Low: 3800 Lumens] |
| Retrofit | [6052 6053 H6054 HD6054 HP6054] |
| Size | [5" x 7"] |
| Sold | [Individually] |
| Style | [Rectangular] |
| Vendor | [trux] |
| Warranty | [4 Year Warranty] |
| Waterproof Rating | [IP67 Rating] |

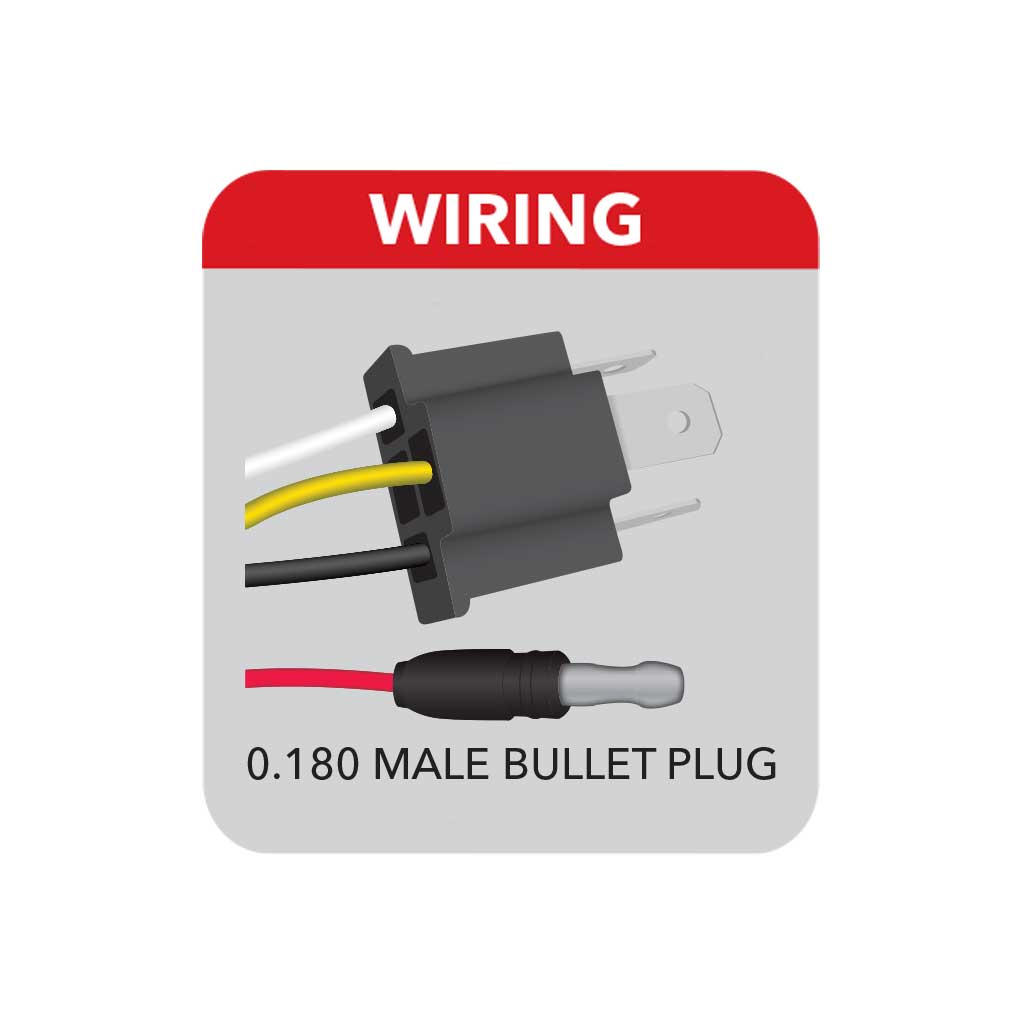

| What's Included | [Headlight Conversion Plug] |
